		PTFE Graphite Packing Series
		PTFE Graphite Fibre Packing PTFE Graphite Fibre Packing With Oil
		PTFE Graphite Filament Yarn Braided Packing PTFE Graphite Packing Inter Aramide
		PTFE Graphite Packing Aramide Corner

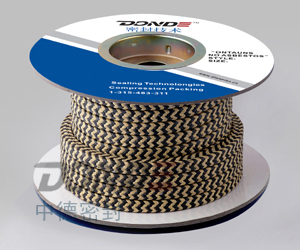

PTFE Graphite Packing Inter Aramide

Item No.:ZD-P1421

Description:PTFE graphite packing inter aramide is a combination of a core of PTFE with high graphite content.PTFE graphite packing inter aramid also has comers of Kevlar filaments.So it is suitable for operation at high pressures and high speeds simultaneously.PTFE graphite packing inter aramid is used in reciprocating pumps or mixers.PTFE graphite packing inter aramid can also be used in reactors,valves for petrochemical,paper and sugar industries or power stations.

Main Specification:

Temperature	-100℃-260℃
Pressure	4-25MPa
PH Range	2-14
Linear Speed)	0-20M/S
Size	33mm-6060mm（or as request）

How to Order：

Item	Order Code
PTFE Graphite Fibre Packing（12% carbon）	ZD-P1210
PTFE Graphite Fibre Packing（25% carbon）	ZD-P1211
PTFE Graphite Fibre Packing With Oil	ZD-P1214
PTFE Graphite Filament Yarn Braided Packing	ZD-P1215
PTFE Packing With Kevlar Fibre Corner	ZD-P1420
PTFE Graphite Packing Inter Aramide	ZD-P1421

For more information,please contact with us directly,thanks！
