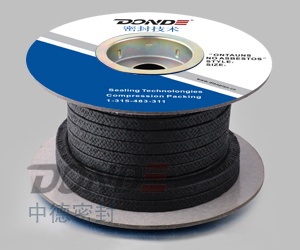

Ramie Packing with graphite & oil
impregnation
Item No.:ZD-P1601
Description:Ramie
Packing with graphite & oil impregnation is mainly used for emulsion, water,oil,applicable to
high pressure slurry pump of oil field, hydraulic support in coal mine
and emulsion pump, etc.The former fabric-reinforced rubber ring has such
disadvantages, such as short life span, frequent changing, and high
strength of manpower, which not only blocks the production, influence
economic benefits but also pollutes the environment seriously. After the
application of Ramie Packing with graphite & oil, the life span was
prolonged several months at least or over half a year at most.It doesn’t
pollute products. Ramie Packing with graphite & oil needs little maintenance,and high
water based packing is easy to install and will not wear the sealing
position.
Main Specification:
|
Temperature |
-40℃~+120℃ |
|
Pressure |
10MPa |
|
PH Range |
5-10 |
|
Linear Speed) |
15M/S |
|
Size |
3*3mm-60*60mm（or as request） |
For more information,please contact with us
directly,thanks!
|
